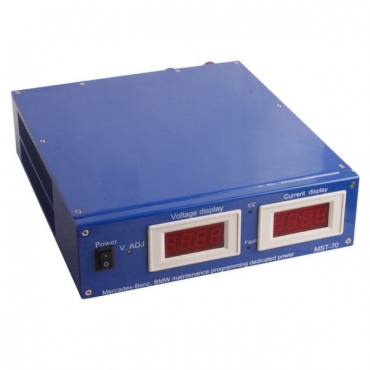

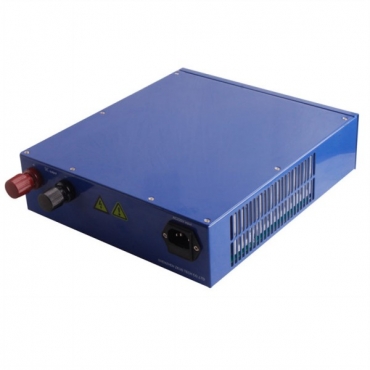

Automatic Voltage Regulator MST-70

Automatic Voltage Regulator MST-70

MST-70 Automatic Voltage Regulator delivers cost-effective and high quality power protection for many applications and prevents equipment damage from voltage fluctuations and transient surge.

Usually,it takes too long time to do vehicle ECU programming, the battery voltage usually is lower or higher than standard values due to electricity instability which might result sudden disruption during programming and cause damage to Vehicle ECU.
MST-60 is birthed from our customers’ needs for safe vehicle ECU programming for BMW, BENZ and other brands of vehicles. By adopting industrial standard, frequency transformer switching power supply and intelligent power charge technologies, Not only it can be used for vehicle ECU programming, but also can be used for many other types of UPS (Uninterruptible Power Supply System) equipments. It regulates the output voltage and current with over-charge and over-heat protection and current adjustment.  It can prolong the lifespan of the battery drastically and enables battery charge to the full automatically if it’s used for battery charge.

Features:

1.Regulates output voltage and current.
2.Protects from over-voltage, over-current and over-temperature with voltage and current number reading indicators on the equipment and over-temperature indicator.
3.Enables automatic and safe vehicle ECU programming.
4.Prolongs battery lifespan and Enables battery being charged to the full if it’s used for battery charge.
5.Can be used unattended and fully automatically

Range of Application

1.Cars:regulate battery voltage during programming for BENZ & BMW etc. premium cars
2. Electromotor bike
3. Electrics screen
4. SPC exchange
5. Broadcast transmitter
6. Communication work station
7. UPS
8. Battery and Power supply system

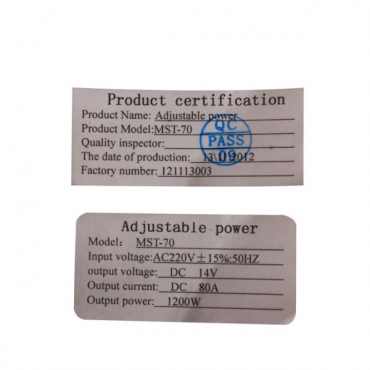

Main Parameters

1. input voltage: AC220V±15%, or AC110V±15%
2. Max. output voltage: 14V
3. Max. output current: 80A
