VVDI for the vehicles VW Audi is a Windows-Based diagnostic software. It includes ImmoPlus, VAG Commander software, Tag Key Tool function. Powerful function tool for VAG vehicles. Now the latest version is V19.2, can update free and frequently, and also very easily.

Newest Update for Immoplus V19.2

VVDI Immoplus V18.0 Software Free Download
VVDI Immoplus V19.0 Software Free Download

How to Update VAG Vehicle Diagnostic Interface VVDI?

1. Please use this software: Commander Update V1.3 on your CD.
2. Give us the serial number
3. We send you update file by email.

VVDI Includes 3 Parts: ImmoPlus, VAG Commander software, Tag Key Tool function.
1. ImmoPlus supports prepare delaer key for VAG new cars. Such as VW 4th/5th immobilizer. Even the car lost all working key or with keyless.
2. VAG Commander Software can do diagonistics for VAG cars. Also change KM, read PIN, learning key etc.
3. Tag Key Tool is used for chipset read/write. Make key with eeprom dump file etc.

V19.2 Update

1.Fix bug for some MED17/EDC17 loadeeprom/flash get PIN,CS,MAC
2.Fix bug for some A6/Q7 OEM key and wirte A6 OEM immo info.
3.Add more car auto detect
4.bugfix

Support Car List:

1 AN002 - KM-CAN

1 AN003 - PIN-CAN

1 AN004 - IMMO panel

1 AN005 - IMMO panel EDC16

1 AN006 - KM/PIN K-Line

1 AN008 - Flash Counters

1 AN009 - Key learning

1 AN010 - Airbag EEPROM

1 AN011 - TV Activation

1 AN012A- EDC16 Odometer

1 AN012B- EDC16 EEP/PIN/IMMO-off

1 AN014 - EDC17 EEPROM

1 AN015 - Flash Memory ECU

1 AN016 - Dealer key learning

1 AN018 - Dealer key learning Q7

1 AN019 - Prepare Dealer Key Q7

1 AN021 - ME7 EEPROM by CAN

1 AN022 - CDC32xx Programmer

1 AN027 - Q7 2008

IMMOPLUS V19.0 Update Information:

1.Immo4 system add 2013 TFT color display support(2013 passat, 2013 tiguan): change KM, add key even lost all key.

2.Immo4 system add 2013 bora JCI support: change KM, add key

3.Immo4 system update 2013 NEC+24C64(support 2013 scirocco): support lost all key

4.Immo4 system support A6/Q7 OEM key, need special OEM key chipset

5.Fix bug for some MED17/EDC17 ECU read PIN, CS, MAC with OBDII.

6.For immo4 system, you can prepare dealer key without TP chipset, it will generate TP with user choose manufacture

7.You can change 48 chip ID in KEY CHIPSET function, need special 48 chip and immo5 coil

8.Add more car auto detect.

9.This version need newest firmware support

10.bugfix

IMMOPLUS V18.0 Update Information:

1.Enable to read Pin, CS and MAC for MED17/EDC17 by OBD in extra function list, or just through eeprom and flash

2.Enable to generate ignition key through OBD without having to remove dashboards for some vehicles with NEC24C32 or NEC24C64 type dashboards. The radio button can be found on key all lost menu

3.Generate the 4th immo key with ID 48 transponder chip according to the hints. Rewritable ID 48 transponder chip, as well as updated the 5th Immo adapter, is needed to support this function

4.Generate A4L/Q5 OEM key (according to the hints), unlock OEM key on key chip menu by using exclusive OEM key and the 5th Immo adapter.

5.Support automatic identification of more car models

6. Firmware update is required to run the new version of IMMOPLUS

7. Bug Fix

VVDI Immoplus V16.0 Upgrade Instructions:

1. IMMOPlus V16.0 can upgrade antenna, after upgrade, it will be more accurate in identifying the electronic chip 48, when the software run, please connect well the antenna coil, the un-upgraded antenna won't be used on 8.6.

2. Add more car models' automatical identification, fix the bug that a part of CDC32XX can't be diagnosed.

3. IMMOPlus V16.0 can't run only after the newest hardware is upgraded.

4. Bug fix.

VVDI Immoplus V15.0 Upgrade Instructions:

1.Add "reading out CS, PIN, MAC from Engine" in the additional function menu. Search the 7th byte security code from the working key then generate the dealer key according to the code, to support this function it needs the 5th IMMO Update Tool

2. Work with more car models with NEC+95320 JCI

3. Support more models of automatic identification

4. To run this software version it requires updating the newest firmware

5. Bug fix

China VAG Vehicle Diagnostic Interface VVDI Function Added:

1. Support NEC 24C32, NEC 24C64 change mileage through obd2, generate dealer's keys, read and write EEPROM and backup flash data.
2. Support GOLF5 MM7(9S12) change mileage through obd2, generate dealer's keys, read and write EEPROM and backup flash data.
3. Add TA special chip pre-program. Directly pre-program ID48 to TA2,TA3, TA4, TA5 chips.

Function:

1) Extracting security access codes (PIN) by OBDII
2) Programming keys by OBDII. Preparation of dealer's keys.
3) Mileage recalibration by OBDII
4) Clearing crash data DTCs by OBDII
5) Read/Program flash memory of engine control units by OBDII. Options for resetting the number of flashing attempts.
6) Exchange speed limit of MMI-TV system

Standard Diagnostic Functions:

1) Connect to the device using KWP2000 over TP2.0, KWP2000 over TP1.6, UDS over ISO transport protocol (CAN), KWP1281 or KWP2000 over K-Line
2) For all electronic control units reading identification data
3) For all electronic control units read error (DTCs)
4) For all electronic control units clear error (DTCs)
5) Scan all units
6) Broadcast requests
7) Measured values
8) Adaptation

Special Functions:

1 Instrument CAN
(1) With this function you can establish diagnostic session with the Instrument cluster using KWP2000 over TP2.0
(2) You can read current odometer value
(3) You can change odometer value
(4) Added support for VDO Instrument Cluster 2006+
(5) Read/Program memory of instrument cluster immobilizer
(6) Reading security access code of the IMMOBILIZER
(7) Read/Write immobilizer related data

2 EZS - Kessy (Q7/A6/Allroad)
(1) With this function you can prepare dealer key/learn dealer key
(2) Read/Write eeprom from EZS - Kessy (Q7/A6/Allroad)

3 Instrument K-Line
(1) With this function you can establish diagnostic session with the Instrument cluster via K-Line (KWP1281 or KWP2000)
(2) You can Read/Change odometer value
(3) Read PIN code
(4) Read/Write eeprom
(5) Read ROM/Flash from the Instrument cluster

4 Engine Control Unit
(1) Read EDC17/MED17 flash memory
(2) Read/Write of flash memory (EDC15, EDC16 all types Read/Write Flashmemory via OBDII (K and CAN). Calculation of checksums while programming, ME7.1.1, MED9.x, ME7.5)
(3) Read/Write flash counters (EDC16)
(4) Read/Write eeprom (VAG-EDC15x, VAG-ME7.1.1, VAG-ME7.1, VAG-ME7.5, VAG-Cartronic ME7.8.)
(5) Extracting Security access code / PIN (EDC15, ME7.x, VAG-Cartronic ME7.8, EDC16, EDC17, MED9.x, Simos PPD)
(6) Extracting Component security bytes (EDC15, ME7.x, VAG-Cartronic ME7.8, EDC16, MED17.5.1, MED 9.x, Simos PPD)
(7) Enable/Disable immobilizer (EDC15, ME7.x, EDC16)
(8) Odometer correction (EDC15, EDC16)

5 Kessy adaptation
This function can be used for adaptation of brand new kessy units to the car. This adaptation can be by CAN TP2.0, K-KWP2000 and also can be used with Porsche Cayenne.

6 TV activation ED1/ED2
(1) Using this special function you can change speed limit of MMI compatible vehicles to change speed where TV becomes OFF

7 Key learning
With this function you can learn key/transponder to the vehicle

8 Dump tool
With this function you can calculate security access codes, change odometer and so on from EEPROM dump from the corresponding unit

9 Airbag
With this special function you can Read/Write EEPROM memory of the airbag module
Clear the crash data of the airbag module

10 Custom Read/Write
Using this application you can read/program memory in some electronic control unit

11 PIN Convertor

12 Service interval
Using this function you can perform reset of the service reminder, reset of the service interval parameters or change service interval options

13 Remote control adaptation
Using this application, you can learn remote controls

14 Navigation
Using this application, you can enable/disable the “Eject” button of the “Navigation” system

15 Cruise control system
Using this application, you can activate/deactivate a cruise control system and change the related
steering wheel electronics( SWE) configuration if SWE unit is available

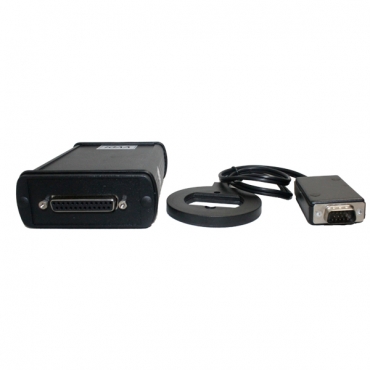

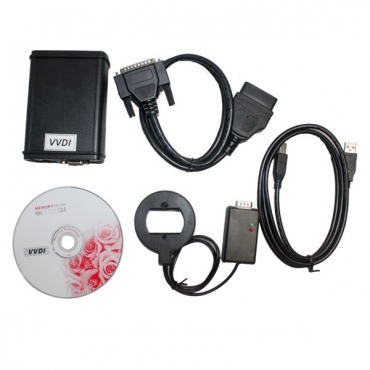

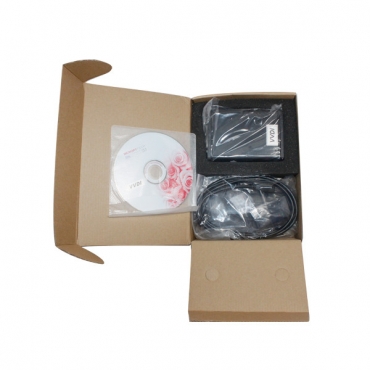

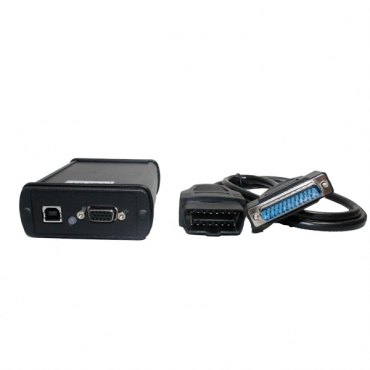

VAG Vehicle Diagnostic Interface VVDI Display:
