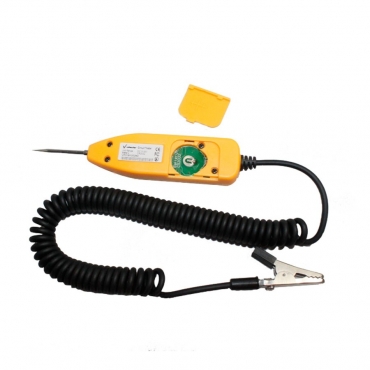

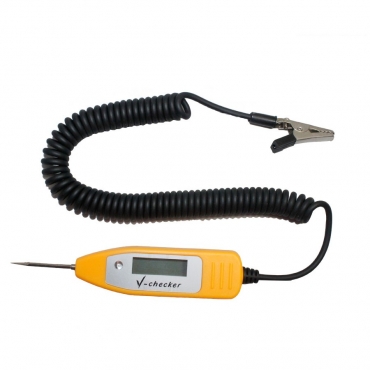

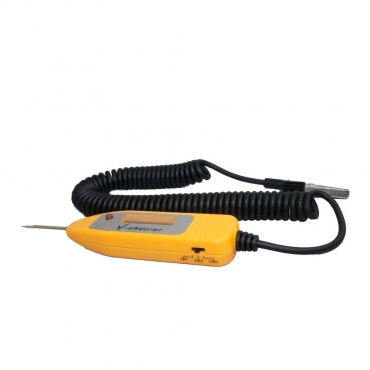

V-CHECKER T701 Circuit Tester Pencil

V-CHECKER VCHECKER T701 Circuit Test Pencil


Feature:

V-checker T701 circuit tester can check the cable assembly signal from 0~36V with accuracy 0.1V. When the signal voltage is over 36V, the LCD screen will show icon ">>". The tester's waveform range is from 0-12V. When the tester leaves the cable, the waveform will be enlarged and the LCD displays 0.4s actual waveform. Meanwhile, the voltage range is marked and user can define waveform of 10-50Hz. When the cable assembly voltage is over 0.1V, the LCD indicates voltage value and waveform. The blue LED would be shining When voltage is over 0.5V.
T701 also can be used to check continuity of cable assembly. It shows test results and graphs through red LED light and LCD screen. When the cable assembly is continuous, the red LED light is On. Verse vase, the red LED light is off.


Specification:
Working voltage: 3.0-3.3V
Working current: 5mA / Standby current: 5μA
Working power: 0.9W / Standby power: 0.1mW


Package including:

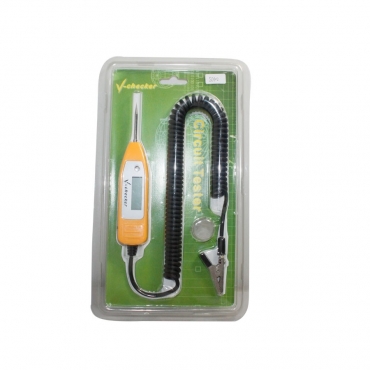

1pc x V-CHECKER T701 Circuit Test Pencil


Package including:
1pc x Main Unit
1pc x OBD2 Connect Cable
1pc x User's Manual
1pc x Carrying Box
